Introducing the highly anticipated, most innovative, brand new T-Rex 700L Dominator!
Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.
Powered by 800MX 520KV motor engraved with DOMINATOR insignia, providing extraordinary power output. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity. In addition, numerous performance upgrades were carried on to this model, such as: DFC main rotor assembly, new style swashplate anti-rotation guide, hardened main gear, new style tail transmission, dual pivoted tail control system, metal frame reinforcement plates, etc.
Align’s 2014 flagship T-Rex 700L Dominator, incorporates all the top grade upgrades, and the new generation GPro flybarless system, with stability and power exceeding all past expectations. The superior control feel, and attractive look, the T-Rex 700L Dominator is the top choice for any enthusiasts!

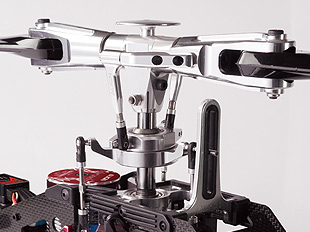

The 700 DFC flybarless rotor head system utilizes extreme low CG design, effectively reduces resistance during flight, increased flight responsiveness and precision.

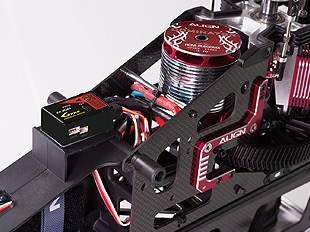

Powered by 800MX 520KV motor engraved with DOMINATOR insignia, providing extraordinary power output. The latest BL815H and BL855H metallic brushless servos are standard equipment, featuring superior torque, speed with unparalleled efficiency and precision. These servos are highly appraised by team pilots for their low operation heat, contributing to dramatically increased longevity.

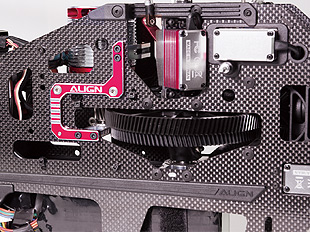

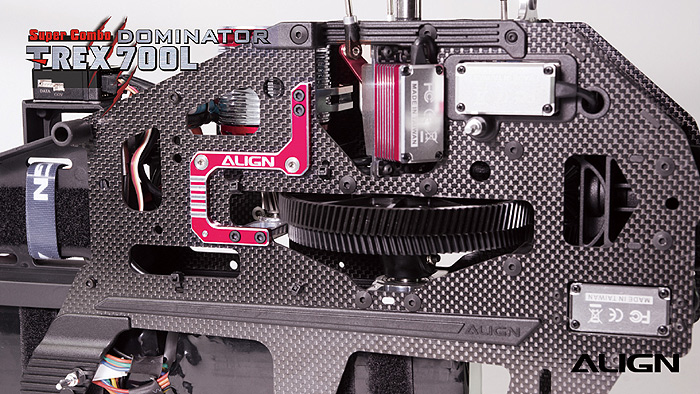

Brand new frame reinforcement plates and blocks effectively improves frame’s anti-torsion ability. The improvement in frame rigidity and solidness is especially evident during extreme 3D maneuvers.
Equipped with Align’s new generation GPro flybarless system, featuring CPU capable of 20 times faster processing power, along with brand new firmware, and performance improving compensation routines; Allowing Gpro to provide faster and more precise response, reaching the pinnacle of helicopter performance. GPro features ergonomically adjustability through PC, as well as iOS and Android smartphone apps.

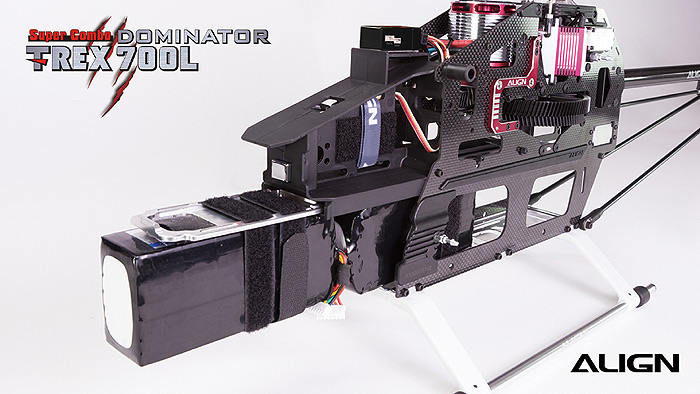

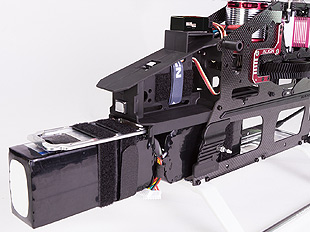

3K side frame plate is integrated with battery rail, combined with all in one cartridge and latching battery mounting design, and CNC aluminum alloy battery mounting plate, the system allows for simplified switching of battery packs and crash protection.

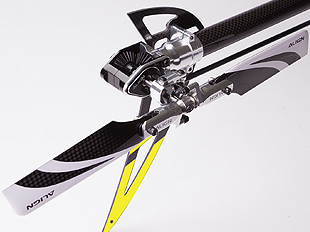

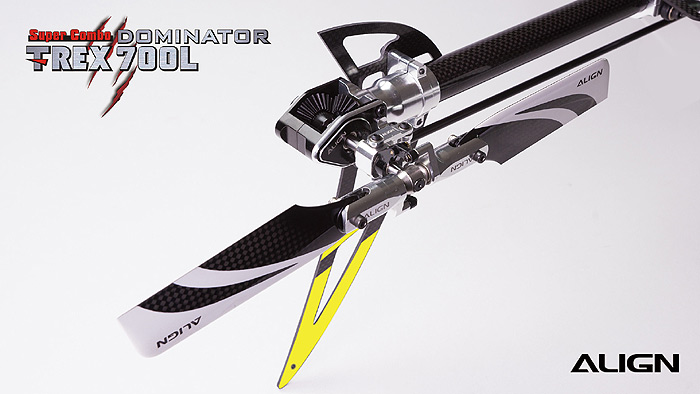

High quality new tail gearbox design, combined with new dual point mounted tail pitch control assembly to minimize slops and increase rudder control precision.

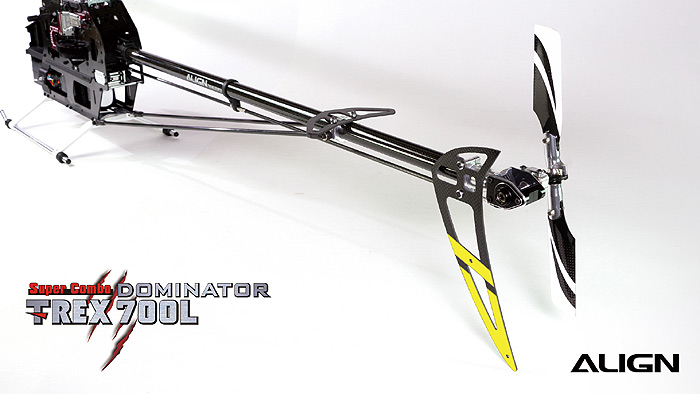

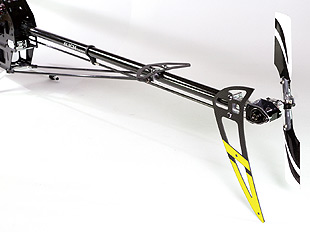

Utilizes newly designed vertical tail fin, creating a brand new look for T-Rex 700L.

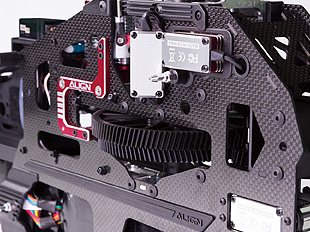

Equipped with new high strength cnc m1 helical main gear and tail drive bevel gear assembly, featuring reinforced overall gear structure and increased gear thickness, effectively improves gear's anti torsion ability to prevent gear from deforming under extreme power,reducing gear wear and power loss.

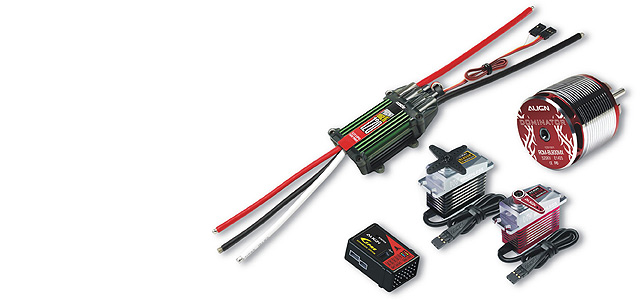

Standard equipment
●Castle EDGE HV 120 Brushless ESC x 1●800MX Brushless Motor(520KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●Gpro Flybarless System x 1
Specification
● Length: 1350mm● Height: 360mm
● Width: 208mm
● Main Blade Length: 700mm
● Main Rotor Diameter: 1582mm
● Tail Rotor Diameter: 281mm
● Motor Drive Gear:12T
● Main Drive Gear:112T
● Autorotation Tail Drive Gear: 104T
● Tail Drive Gear: 22T
● Drive Gear Ratio: 1:9.33:4.37
● Weight(With Motor): 3310g
Accessories
●T-REX 700L DOMINATOR Kits Set x 1set●700 Carbon Fiber Blades x 1set
●105mm 3K Carbon Fiber Tail Blades x 1set
●800MX Brushless Motor(520KV) x 1
●BL815H High Voltage Brushless Servo x 3
●BL855H High Voltage Brushless Servo x 1
●3K Carbon Fiber Tail Boom x 1
●Aluminum Tail Boom x 1
●Castle EDGE HV 120 Brushless ESC x 1
●Gpro Flybarless system x 1set
Radio transmitter and electronic equipment required for assembly:
●Transmitter(7-channel or more, helicopter system)
●Receiver(7-channel or more)
●6S Li-Po 4500 ~ 5200mAh x 2
●2S Li-Po 1900 ~ 2300mAh x 1
●Digital Pitch Gauge
