Focus Shots

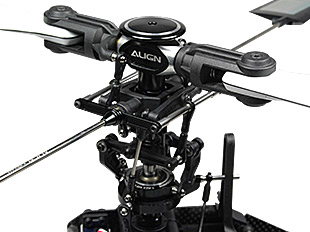

High precision main rotor assembly.

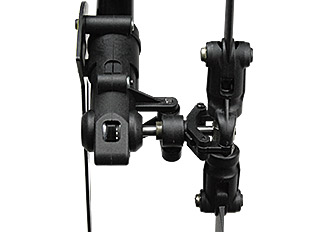

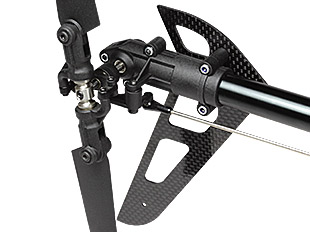

High precision bearinged dual link tail pitch slider, with high speed thrust bearinged tail blade grips.

Long wear, surface hardened tail pitch slider sleeve.

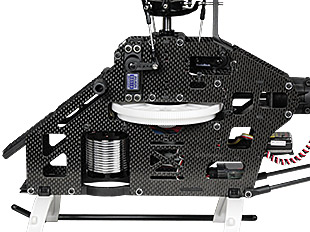

New-sturdy lightweight main frame/1.6mm.

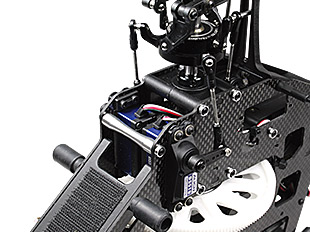

Main shaft bearing block.

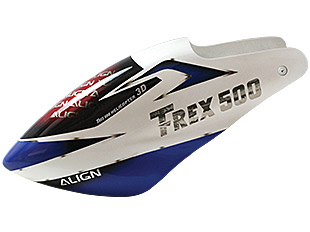

Fiberglass painted canopy.

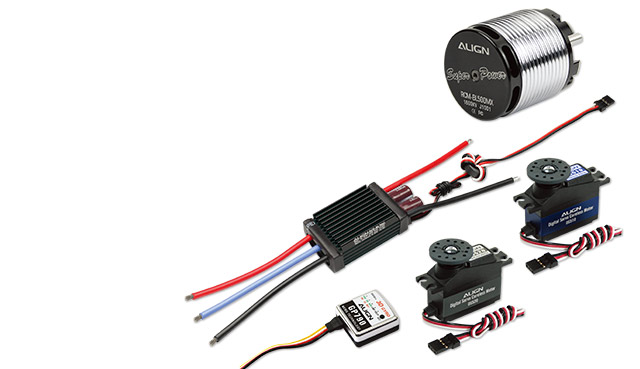

Standard equipment
●500MX Brushless motor x 1●RCE-BL70G Brushless ESC x 1
●DS510 Digital Servo x 3
●DS520 Digital Servo x 1
●GP790 Head lock gyro x 1

Specification
●Length:840mm●Height:310mm
●Main Blade Length:425mm
●Main Rotor Diameter:970mm
●Tail Rotor Diameter:200mm
●Motor Ponion Gear:13T
●Main Drive Gear:162T
●Autorotation Tail Drive Gear:145T
●Tail Drive Gear:31T
●Drive Gear Ratio:1:12.46:4.68
●Weight(w/o power system):980g
●Flying Weight:Approx 1700g
●Color carton:48.3x18.7x9.8cm
●Outer carton:58x50x42cm ,12sets/ctn
Accessories
●T-REX 500E Kit Set x 1 set●425D carbon fiber blades x 1
●RCE-BL70G Brushless ESC x 1
(Built-in 5-6V step-less adjustable BEC)
●500MX Brushless motor x 1
●Motor ponion gear 13T x 1
●DS510 Digital Servo x 3
●DS520 Digital Servo x 1
●GP790 Head lock gyro x 1
Radio transmitter and electronic equipment required for assembly:
1.Transmitter(6-channel or more,helicopter system)
2.Receiver(6-channel or more)
3.Pitch gauge x 1
4.22.2V 6S Li-Po 2100~2500mAh battery x 1
